Carotid body tumor

Carotid body tumors (paragangliomas) present as slow-growing neck masses typically in the 4th-5th decade, often discovered incidentally or when enlarging. Imaging is performed to characterize the lesion location, extent, vascular relationship, and Shamblin classification before surgical planning.

Key Images

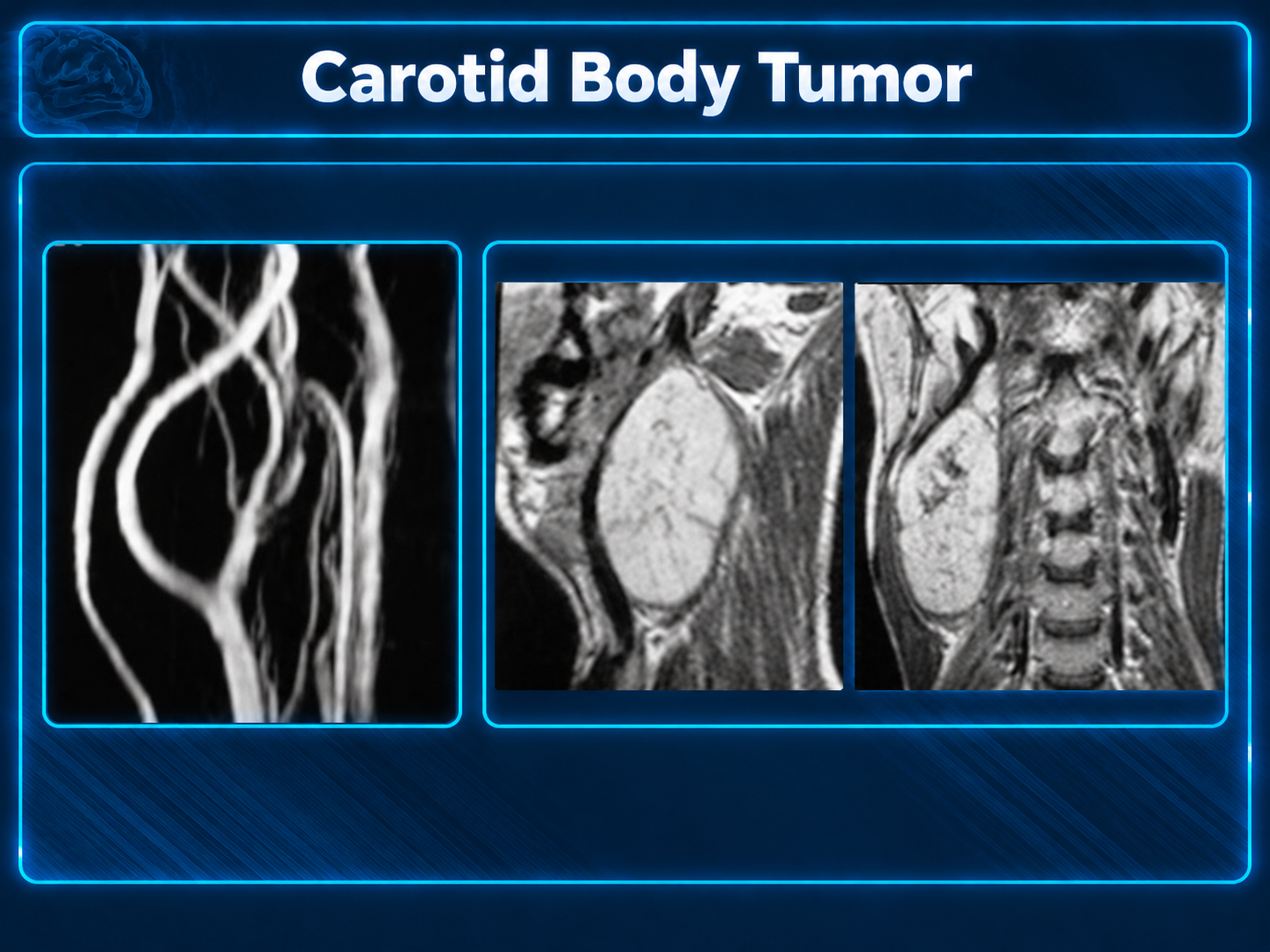

Carotid Body Tumor

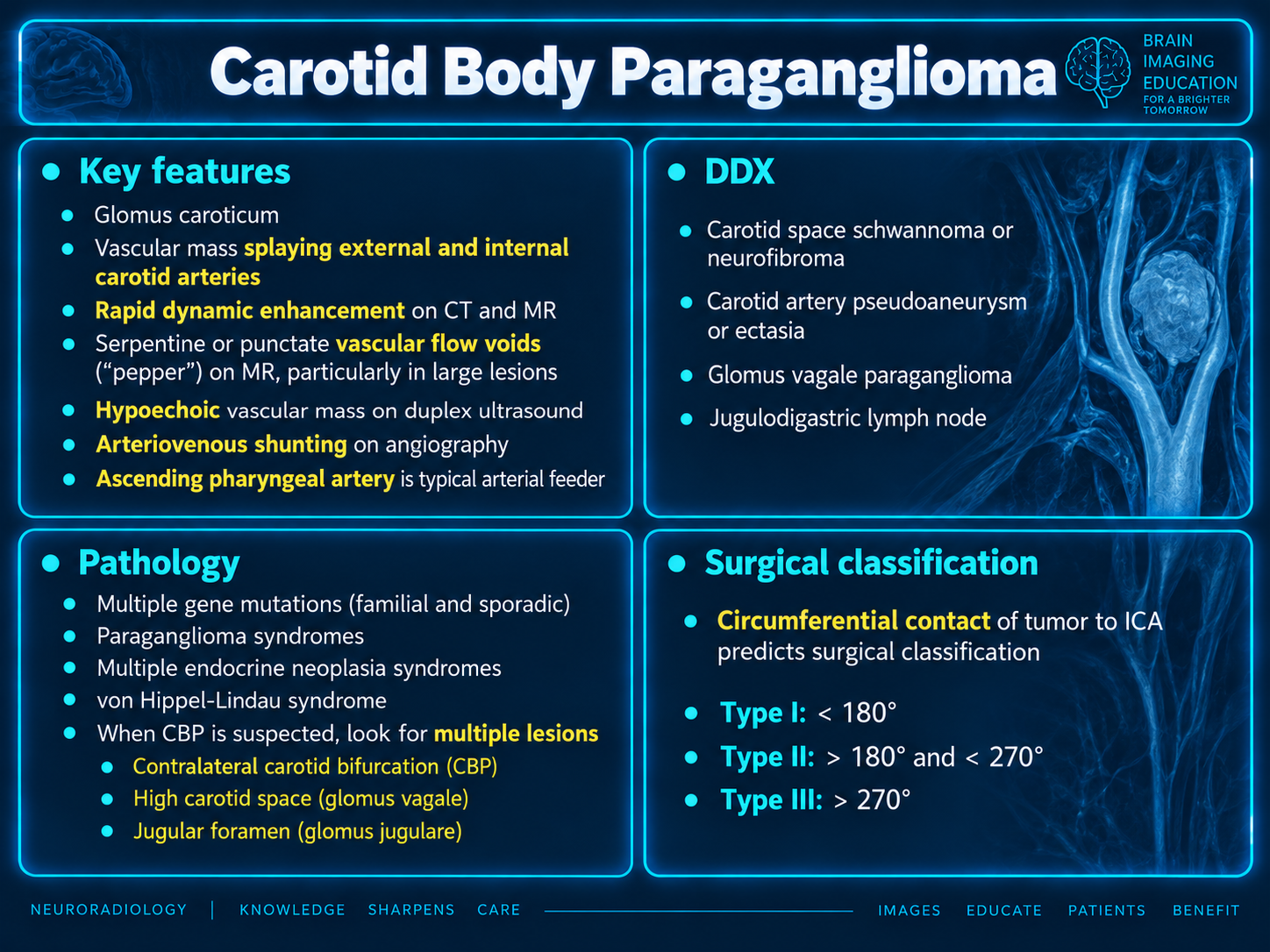

Carotid Body Tumor

Carotid Body Tumor

Look For First
  • Splaying of internal and external carotid arteries at the carotid bifurcation ('lyre sign')
  • Intensely enhancing vascular mass anterior to sternocleidomastoid at level of hyoid bone
  • Salt-and-pepper appearance on MRI from flow voids and hemorrhage
  • Circumferential or eccentric encasement of carotid vessels (degree determines Shamblin grade)
Key Image Findings

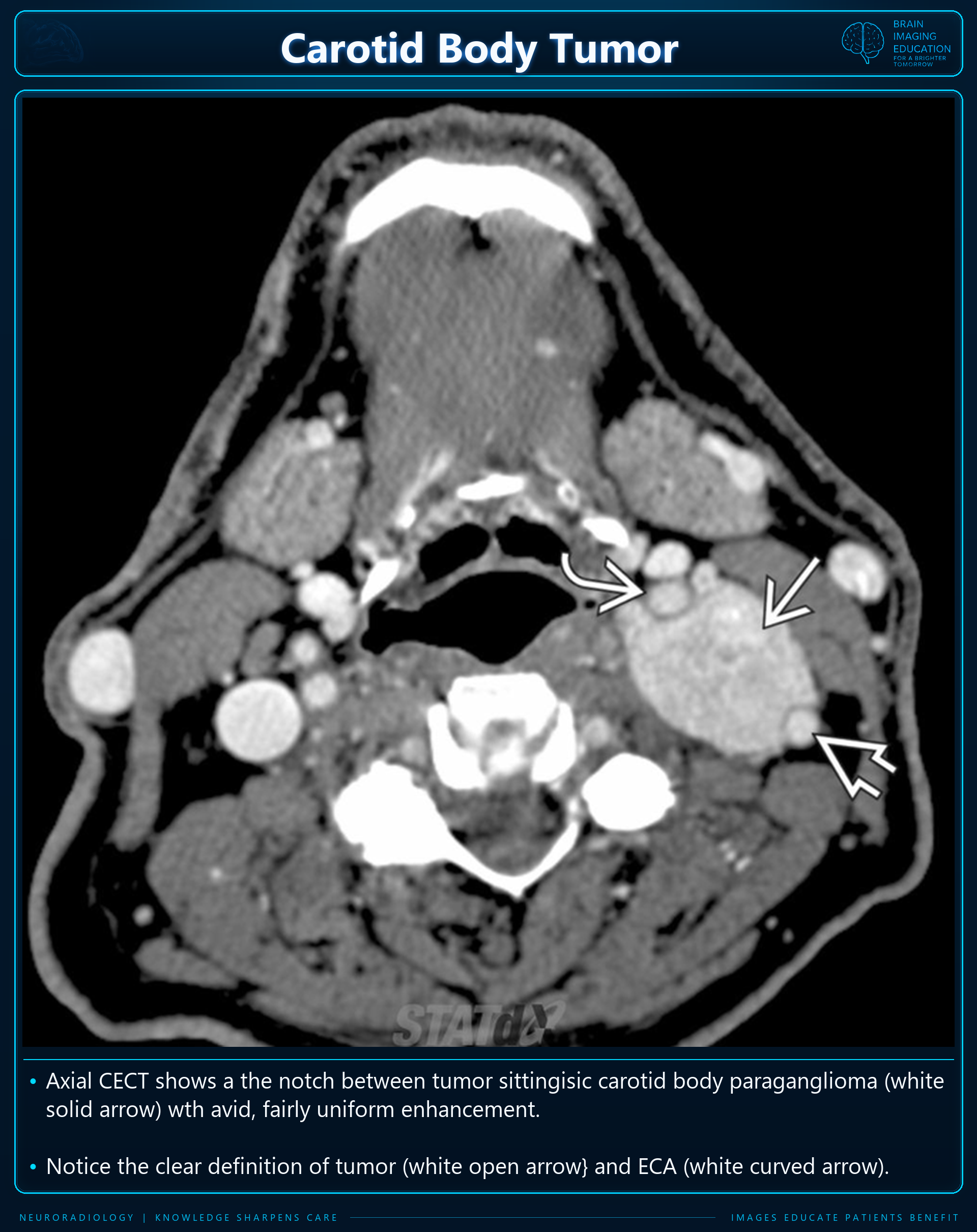

  • On CT: soft tissue density on non-contrast images with bright, rapid enhancement (faster than schwannoma), demonstrating splaying of ICA and ECA with variable circumferential encasement and possible extension through vessel wall.
  • On MRI T1-weighted: iso- to hypointense mass with punctate areas of intrinsic high T1 signal from hemorrhage ('salt') and low signal from flow voids ('pepper'); intense gadolinium enhancement.
  • On MRI T2-weighted: hyperintense mass with punctate high signal from slow flow ('salt') and low signal from fast flow voids ('pepper').
  • Characteristic salt-and-pepper appearance on both T1 and T2 sequences in larger tumors, caused by combination of hemorrhage, slow flow, and arteriovenous shunting.
  • Location at carotid bifurcation with mass moveable side-to-side but not up-down due to carotid sheath containment.
  • Shamblin classification grading: Group I (<180° encasement, minimal attachment), Group II (180-270° encasement, moderate attachment), Group III (>270° encasement with carotid incarceration); Luna-Ortiz modification adds IIIb for transmural infiltration.
  • On DSA (when performed): intense tumor blush with 'early vein' from arteriovenous shunting; ascending pharyngeal artery is main supply; splaying of carotid bifurcation ('lyre sign').
  • Ultrasound shows hypoechoic solid mass at bifurcation with variable irregular color Doppler flow in cephalad direction and low-resistance waveform.
Differential Diagnosis
  • Vagal schwannoma: splays ICA and internal jugular vein apart (widening the angle), displaces ICA anteromedially rather than creating true bifurcation splaying; less vascular enhancement pattern.
  • Vagal neurofibroma: similar location but less vascular; lacks the intense enhancement and salt-pepper MRI appearance.
  • Vagal paraganglioma: identical pathology and imaging appearance but located more rostrally (higher in the neck) rather than at carotid bifurcation.
  • Hypervascular lymphadenopathy: lacks the characteristic splaying of carotid bifurcation and typical distribution at lateral neck nodes rather than carotid sheath.
  • Carotid bulb ectasia: no mass effect, no true splaying, hypodense/isointense to blood pool with minimal or no enhancement.
  • Schwannoma (non-vagal): slower enhancement (not as bright or rapid as carotid body tumor), does not cause characteristic bifurcation splaying.
Discussion

Carotid body tumors are the most common head-and-neck paragangliomas (65% of cases) and account for 30-40% hereditary rates with SDHx mutations; SDHD/SDHAF2 carry highest risk for multifocal disease while SDHB carries highest metastatic risk.

All patients should undergo germline SDHx mutation testing and genetic counseling given hereditary syndromic associations and cascade testing implications for family members.

The Shamblin classification predicts surgical ease, vascular reconstruction need, and intraoperative blood loss; degree of carotid encasement is the primary determinant and influences management strategy.

Preoperative embolization may reduce intraoperative blood loss in larger tumors but is not universally performed, with practice variation between centers.

Biochemical screening for catecholamine excess (plasma free metanephrines or 24-hour urine metanephrines) is recommended before surgery to prevent intraoperative hypertensive crisis, despite rare occurrence.

Gross total resection achieves cure in >90% of non-metastatic cases; observation is reasonable in elderly patients with small asymptomatic tumors, while radiotherapy is reserved for high-operative-risk patients.

Reporting Pearls

Clearly describe the degree of carotid artery encasement using the Shamblin classification (state percentage of circumferential involvement and whether transmural infiltration is present), note the presence/absence of flow-limiting features, identify involvement of adjacent cranial nerves (glossopharyngeal, vagus, accessory, hypoglossal), and specify the main arterial supply (ascending pharyngeal artery); this information directly guides surgical planning and predicts operative complexity.

Pitfalls
  • Confusing carotid body tumor with vagal schwannoma: remember that schwannomas splay the ICA and IJV apart in opposite directions, while carotid body tumors splay only the ICA and ECA at the bifurcation.
  • Underestimating the degree of vascular involvement: careful assessment of circumferential encasement percentage and transmural extension is critical for accurate Shamblin grading and surgical planning.
  • Mistaking slow flow and hemorrhage components for true enhancement: the salt-and-pepper appearance on MRI is characteristic but can be confused with other findings if not properly understood as related to flow dynamics and microhemorrhages.
  • Failing to assess for bilateral disease and multifocal paragangliomas: 10-15% of carotid body tumors are bilateral, and 35-50% of hereditary cases are multicentric; dedicated evaluation of the contralateral carotid bifurcation and other head-neck paraganglioma sites is essential.
