Thyroglossal duct cyst

Thyroglossal duct cysts are the most common congenital neck cysts and pediatric neck masses, typically presenting during childhood as a painless, gradually growing midline anterior neck mass that classically elevates with tongue protrusion and moves with swallowing.
Look For First
  • Painless, midline anterior neck mass in a child that elevates with tongue protrusion
  • Thin-walled cystic lesion on ultrasound with posterior acoustic enhancement and splaying of strap muscles
  • Cyst located anywhere along the thyroglossal duct course (suprahyoid ~20-25%, at hyoid ~30%, infrahyoid ~45%) with most (~70%) in true midline
Key Image Findings
  • Ultrasound: hypo- or anechoic thin-walled cyst with posterior acoustic enhancement, splaying of strap muscles, and usually no internal vascularity unless infected; may show internal complexity with debris, septa, or proteinaceous material even without infection, particularly in adults.
  • CT: thin-walled, smooth, well-defined homogeneous lesion with variable density (20-80 HU) in anterior midline or paramedian location; demonstrates thin rim (capsular) enhancement; infrahyoid cysts typically embedded within strap muscles.
  • MRI T1: variable signal intensity—low signal if low protein or uncomplicated, but most commonly high signal due to previous hemorrhage, infection, or high proteinaceous content.
  • MRI T2: typically high signal consistent with cystic/fluid content.
  • MRI T1 with gadolinium: no enhancement in uncomplicated cysts, or thin peripheral rim enhancement may be seen.
  • Ectopic thyroid tissue occurs in approximately 40% of cases as a small (~0.5 cm) focus within the cyst wall or adjacent soft tissues and may enhance.
  • Infected cysts show thickened or irregular walls with increased blood flow and surrounding inflammatory change on ultrasound; any internal enhancement or solid component raises concern for rare malignancy (almost always papillary thyroid carcinoma).
  • Location distribution: ~70% are truly midline, ~30% are off-midline (typically adjacent to thyroid cartilage), and virtually all are within 2 cm of the midline.
Differential Diagnosis
  • Branchial cleft cyst: three times less common and usually located well away from the midline, whereas thyroglossal duct cysts are characteristically midline.
  • Epidermoid cyst: located superficial to the strap muscles, whereas thyroglossal duct cysts splay and embed within the strap muscles.
  • Thyroid cyst or thyroid neoplasm: originates from the thyroid gland itself rather than the midline anterior neck along the course of the duct.
  • Delphian adenopathy: lymph node enlargement in the midline anterior neck that enhances and does not show simple cystic morphology.
  • Laryngocele: air-filled lesion typically lateral to the midline with characteristic air density/signal.
  • Ectopic thyroid: may be associated with thyroglossal duct cyst as a soft tissue lesion, but presents as enhancing thyroid tissue rather than a fluid-filled cyst.
Discussion

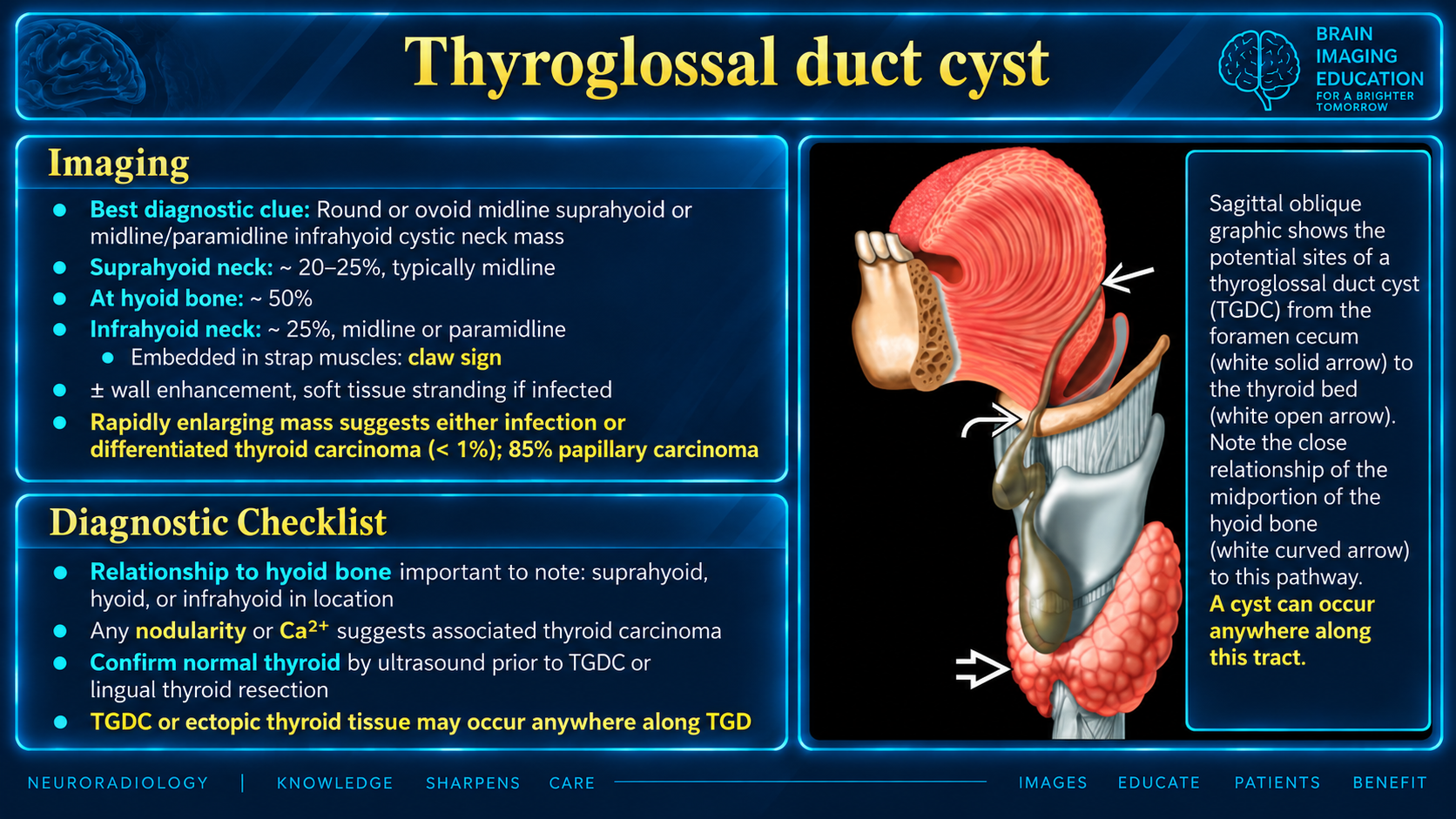

Thyroglossal duct cysts result from failure of normal obliteration of the embryologic thyroglossal duct during the 8th-10th gestational week and can thus occur anywhere along the duct course from the foramen cecum to the thyroid gland.

The classic clinical finding of elevation with tongue protrusion is pathognomonic, helping distinguish thyroglossal duct cysts from other midline neck masses.

Ectopic thyroid tissue is present in ~40% of cases and may be visible as a small enhancing focus within or adjacent to the cyst wall; this is an important association to recognize.

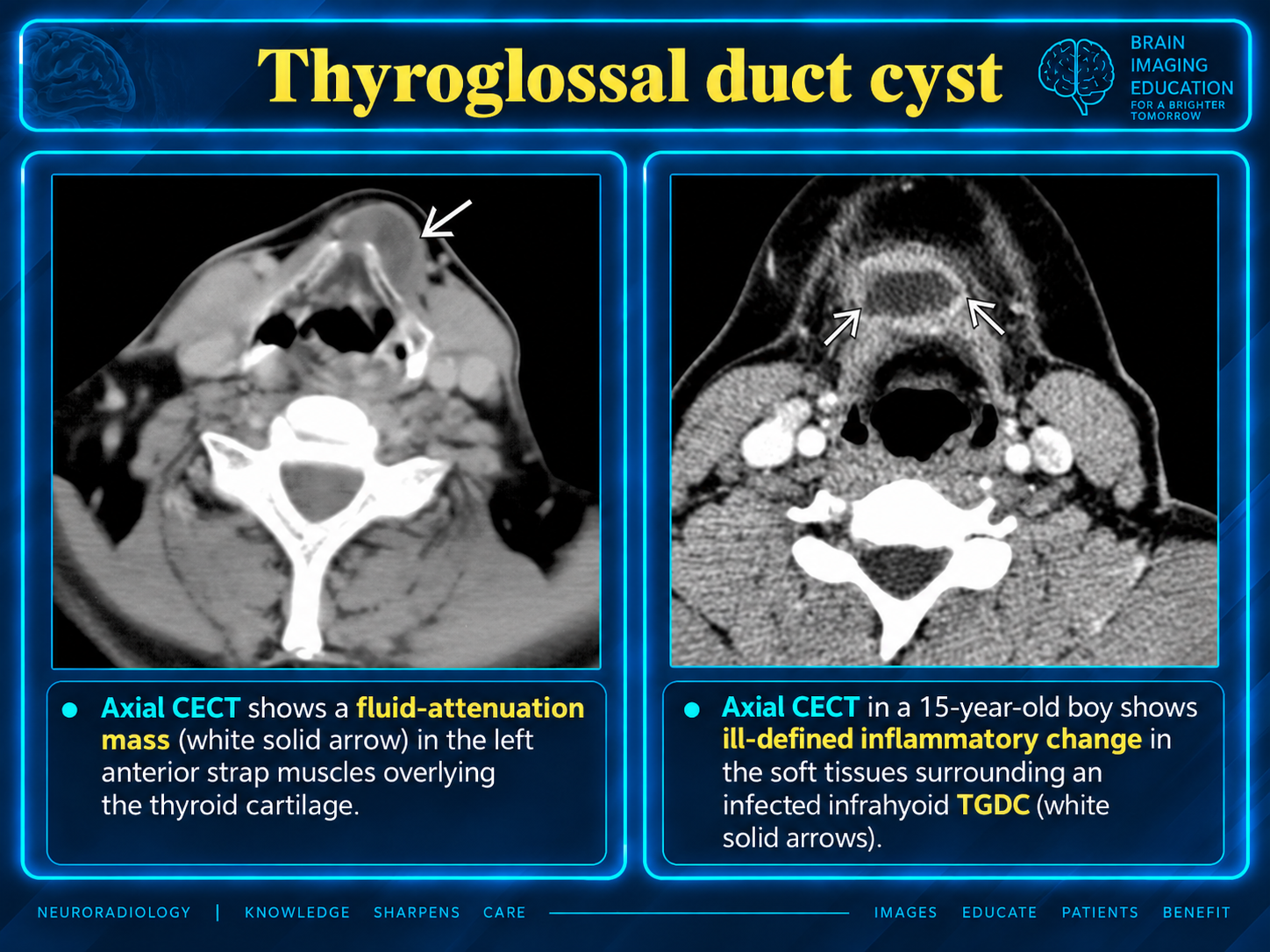

Infection is a common complication that can present at any age and changes the imaging appearance with wall thickening, increased vascularity, and surrounding inflammation.

Malignancy is rare (~2% of cysts) but when it occurs, it is almost always papillary thyroid carcinoma; solid enhancing components or internal calcification should raise suspicion.

The Sistrunk procedure, which includes complete resection of the cyst, duct up to the foramen cecum, and the middle third of the hyoid bone, is the standard treatment with ~10% recurrence rate when performed correctly.

Reporting Pearls

Describe the cyst by its location relative to the hyoid bone (suprahyoid, at hyoid, or infrahyoid) and note whether it is truly midline or off-midline; document any solid components, internal enhancement, or ectopic thyroid tissue, and comment on whether the cyst is uncomplicated or shows signs of infection; if infected, describe wall thickening and surrounding inflammatory change.

Pitfalls
  • Mistaking a thyroglossal duct cyst for a branchial cleft cyst: remember that thyroglossal duct cysts are characteristically midline (~70%), whereas branchial cleft cysts are typically well away from the midline.
  • Overlooking internal complexity and proteinaceous debris in adult patients: even uncomplicated cysts may show heterogeneous internal echoes or intermediate signal intensity on MRI, particularly in older patients, and this does not necessarily indicate infection or malignancy.
  • Failing to recognize ectopic thyroid tissue (~40% of cases) as a soft tissue lesion associated with the cyst, which may be confused with suspicious solid component or malignancy.
  • Missing signs of malignancy: solid enhancing components, internal calcification, or marked enhancement should raise suspicion for papillary thyroid carcinoma, which occurs in ~2% of cases and is often discovered incidentally after surgical resection rather than preoperatively.
