Juvenile nasopharyngeal angiofibromas

Young male patient (typically 10-18 years, peak ~15 years) presenting with epistaxis, nasal obstruction, or chronic otomastoiditis; imaging performed to diagnose and stage this locally aggressive vascular tumor, with biopsy avoided due to hemorrhage risk.

Key Images

Image 5


Image 2

Image 3

Image 4

Look For First
  • Salt-and-pepper appearance on MRI from prominent flow voids (dark interspersed signal within the mass)
  • Lobulated enhancing soft-tissue mass arising from the sphenopalatine foramen region extending into posterior nasopharynx and pterygopalatine fossa
  • Anterior bowing of the posterior maxillary sinus wall (Holman-Miller sign) indicating bone remodeling
  • Young male patient age with vivid contrast enhancement reflecting extreme vascularity
Key Image Findings

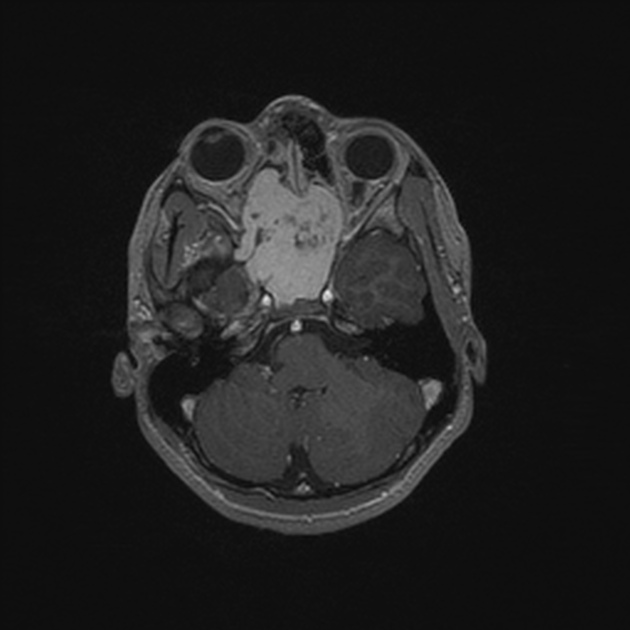

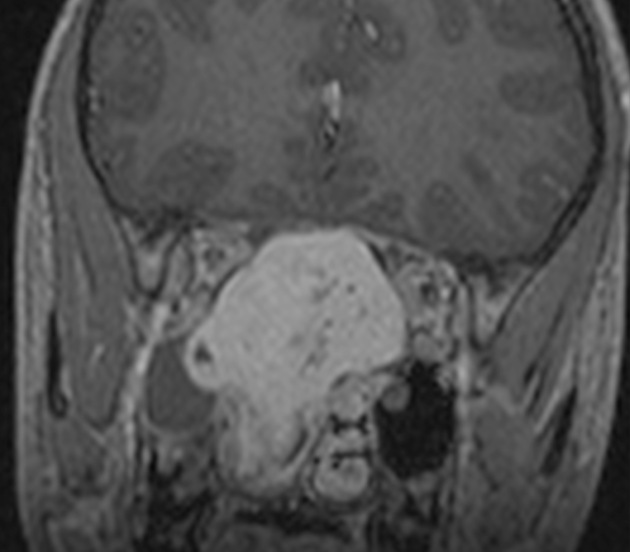

  • On MRI T1 sequences, JNA shows intermediate heterogeneous signal with vivid gadolinium enhancement reflecting the tumor's extreme vascularity and distinguishing it from avascular masses.
  • Prominent flow voids appear dark on all MRI sequences, creating the characteristic salt-and-pepper appearance that is highly specific for JNA.
  • On MRI T2 sequences, the mass is heterogeneous with prominent dark flow voids; trapped secretions (e.g., in obstructed sinuses) appear as high-signal intensity T2 foci.
  • DWI/ADC analysis shows low diffusion-weighted signal with very high ADC values (typically >2000 × 10⁻⁶ mm²/s), helping distinguish JNA from other nasopharyngeal tumors like rhabdomyosarcoma or lymphoma which have restricted diffusion.

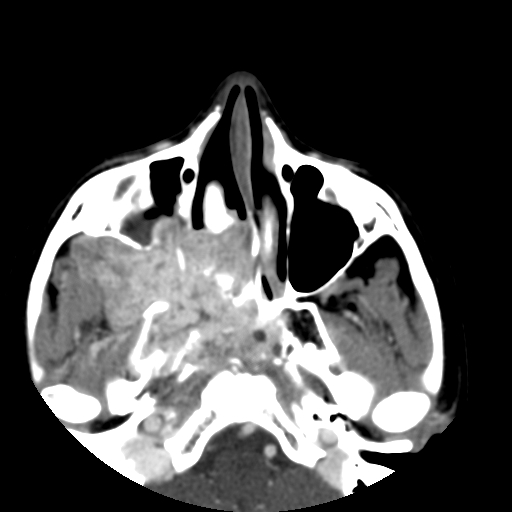

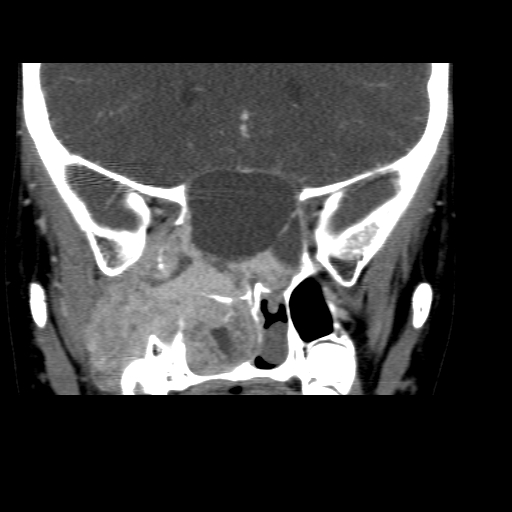

  • On CT, the lobulated non-encapsulated soft-tissue mass is centered on the sphenopalatine foramen (which is often widened) with marked contrast enhancement; bony changes include anterior bowing of the posterior maxillary sinus wall, widening of the pterygomaxillary fissure and vidian canal.
  • Larger tumors may show frank bone destruction of the medial pterygoid plates or middle cranial fossa invasion; smaller tumors typically show infiltration of cancellous bone or remodeling with cortical thinning/expansion.
  • On angiography, the tumor is supplied predominantly by the external carotid artery system, especially the internal maxillary artery and ascending pharyngeal artery, with less common internal carotid supply in large tumors.
  • MRI is superior for evaluating tumor extension into the orbit and intracranial compartments, which are critical for preoperative staging and surgical planning.
Differential Diagnosis
  • Rhabdomyosarcoma (head and neck)—differentiated by typical low ADC values in rhabdomyosarcoma versus very high ADC in JNA; also occurs in younger children and lacks prominent flow voids.
  • Esthesioneuroblastoma—centered in the roof of the nasal cavity rather than sphenopalatine foramen region; typically shows low ADC values and lacks prominent flow voids characteristic of JNA.
  • Nasopharyngeal carcinoma—occurs in older patients, shows restricted diffusion (low ADC) unlike JNA, and lacks prominent vascularity and flow voids.
  • Nasopharyngeal lymphoma—shows low ADC values due to high cellularity, distinguishing it from the very high ADC of JNA.
  • Sinonasal adenoid cystic carcinoma—may have high T2 signal and facilitated (high) ADC like JNA but lacks the characteristic prominent flow voids.
  • Non-neoplastic masses (lymphangioma, encephalocele, arteriovenous malformation)—lack the solid enhancing component and prominent vascularity seen in JNA.
Discussion

JNA tumors express androgen receptors, explaining their near-exclusive occurrence in males, growth during puberty, and potential regression after puberty or with estrogen administration.

Biopsy is contraindicated due to the risk of life-threatening brisk hemorrhage from the tumor's extreme vascularity; imaging diagnosis is therefore paramount, making MRI and CT essential for diagnosis and staging.

Preoperative DSA with embolization of feeding vessels (primarily internal maxillary artery branches) is typically performed within days before surgical resection to reduce intraoperative hemorrhage risk.

Recurrence rates are significantly higher (up to 50%) in cases with skull base involvement, necessitating careful imaging assessment of intracranial and extracranial extension for surgical planning.

The salt-and-pepper appearance on MRI from prominent flow voids is highly specific for JNA and should raise suspicion for this diagnosis in an adolescent male with the appropriate clinical presentation.

Early postoperative contrast-enhanced CT reliably detects residual disease after surgical resection, guiding the need for further intervention or radiation therapy if incomplete resection has occurred.

Reporting Pearls

Describe the mass as a lobulated, enhancing soft-tissue mass centered on the sphenopalatine foramen with characteristic prominent flow voids creating a salt-and-pepper appearance on MRI, specify the direction and extent of extension (nasopharyngeal, pterygopalatine fossa, orbital, intracranial), document any bony erosion or remodeling (especially Holman-Miller sign and pterygoid plate involvement), and note the degree of Eustachian tube obstruction; in a young male this constellation is highly characteristic of JNA.

Pitfalls
  • Mistaking the prominent flow voids for intratumoral cystic change or hemorrhage rather than recognizing them as characteristic vascularity; JNA is predominantly solid with enhancement, not cystic.
  • Underestimating tumor extent by missing subtle intracranial or orbital involvement on imaging, which can significantly affect surgical approach and recurrence risk.
  • Obtaining a biopsy before imaging diagnosis is confirmed, risking catastrophic hemorrhage; imaging must establish the diagnosis before any tissue sampling.
  • Confusing restricted diffusion (low ADC) lesions like lymphoma or rhabdomyosarcoma with JNA; very high ADC (>2000) in JNA is a key distinguishing feature.
